Instructions for SOTA Cloud
MouthWatch cameras easily integrate with SOTA Cloud. Use the MouthWatch camera to capture images of the patient and store them directly into the patient record.
Step 1 – Download the Button Capture Software
- Go to: https://www.mouthwatch.com/intraoral-cameras/getting-started/ and download our Button Capture Software.
- View the installation guide on the support page
- Install the program, following all steps in the guide

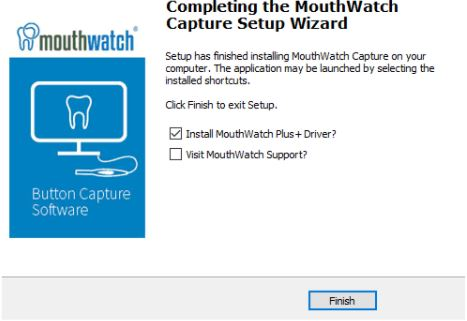

Important: If setting up a MouthWatch Plus+ make sure to install the required driver by checking the box at this step:
- Once you install the software, right click on the MouthWatch Capture icon in the lower right corner of your screen

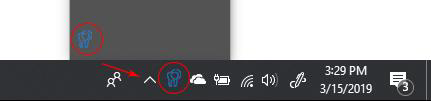

- Quick Tip: If you don’t see the MouthWatch Capture icon, click the ^ button (indicated by the red arrow in the photo below) to expand the System Tray. You can drag and drop the icon from the expanded System Tray down to your Taskbar.
- A menu will display. Left click on Custom Keystroke in the list. In the window that opens, highlight the first blank field and press Spacebar on your keyboard to fill the field with the word "SPACE" as shown below.
Step 2 – Plug in the MouthWatch Camera
Make sure that you plug the USB connector into a powered USB port. Sometimes, these are located on the front or back of the computer. If your monitor has USB ports, these may not be powered.
If setting up a MouthWatch Plus+ use a USB 3.0 port.
Step 3 – Windows Recognizes the Camera
Once the MouthWatch camera is plugged in, you should see a small alert on the bottom saying that New Hardware USB Video Device was recognized. Confirm the MouthWatch Capture icon is blue as shown above. If it is orange, try a different USB port.
Step 4 – SOTA Cloud

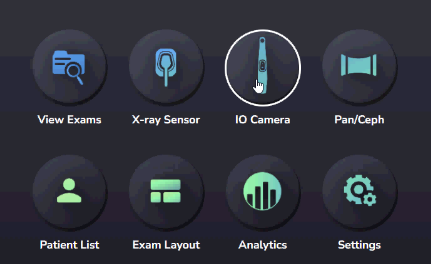

With a patient selected, navigate to IO Camera, from the main screen.
- After selecting your template, ensure to highlight the box you which to start in by clicking on it.
- On the right hand side of the page, ensure USB Video Device is selected from the drop down menu and press Auto to begin taking a sequence of photos.
Step 5 – All set!
