Instructions for ClearDent Integration
MouthWatch cameras easily integrate with ClearDent imaging software. Use the MouthWatch camera to capture images of the patient and store them directly into the patient record.
Step 1 – Download the Button Capture Software
- Go to: https://www.mouthwatch.com/intraoral-cameras/getting-started/ and download our Button Capture Software.
- View the installation guide
Install the program, following all steps in the guide
Important: If setting up a MouthWatch Plus+ make sure to install the required driver by checking the box at this step:
- Once you install the software, right click on the MouthWatch Capture icon in the lower right corner of your screen
A menu will display. Select Custom Keystrokes. Highlight the first blank sequence and press your spacebar to fill with the word Space, like shown below, then hit save.
Quick Tip: If you don’t see the MouthWatch Capture icon, click the ^ button (indicated by the red arrow in the photo below) to expand the System Tray. You can drag and drop the icon from the expanded System Tray down to your Taskbar.
Step 2 – Plug in the MouthWatch Camera
Make sure that you plug the USB connector into a powered USB port. Sometimes, these are located on the front or back of the computer. If your monitor has USB ports, these may not be powered.
If setting up a MouthWatch Plus+ use a USB 3.0 port.
Step 3 – Windows Recognizes the Camera
Once the MouthWatch camera is plugged in, you should see a small alert on the bottom saying that New Hardware “USB Video Device” was recognized.
Step 4 – ClearDent
With a patient selected navigate to the intraoral imaging button on the left side.

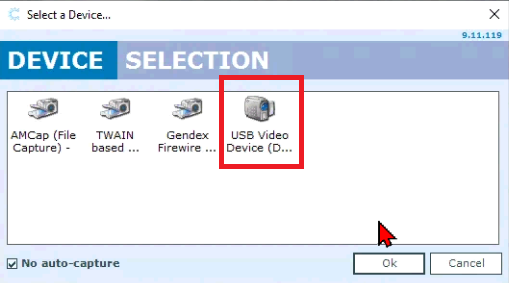

- Select USB Video Device from the devices
Step 5 – Capture Intraoral Photos
The camera will open, and you can begin taking photos. When finished, click close in the lower right to save to the patient record.
Step 6 - All Set!
