Instructions for IDentalSoft Integration
MouthWatch cameras easily integrate with IDentalSoft imaging software. Use the MouthWatch camera to capture images of the patient and store them directly into the patient record.
Step 1 – Download the Button Capture Software
-
Use this link to begin the download: DOWNLOAD MOUTHWATCH CAPTURE

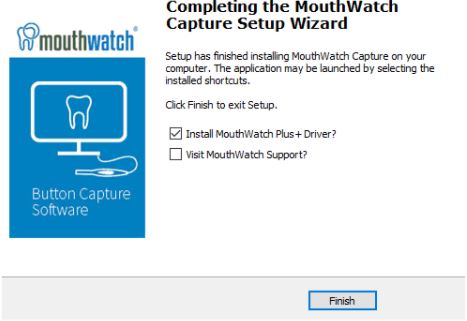

Important: If setting up a MouthWatch Plus+ make sure to install the required driver by checking the box at this step:
- Once you install the software, right click on the MouthWatch Capture icon in the lower right corner of your screen
-
A menu will display. Select Twain from the list.
-

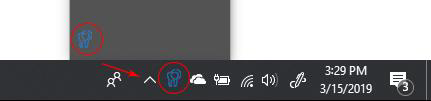

Quick Tip: If you don’t see the MouthWatch Capture icon, click the ^ button (indicated by the red arrow in the photo below) to expand the System Tray. You can drag and drop the icon from the expanded System Tray down to your Taskbar.
Step 2 – Plug in the MouthWatch Camera
Make sure that you plug the USB connector into a powered USB port. Sometimes, these are located on the front or back of the computer. If your monitor has USB ports, these may not be powered.
If setting up a MouthWatch Plus+ use a USB 3.0 port.
Step 3 – Windows Recognizes the Camera
Once the MouthWatch camera is plugged in, you should see a small alert on the bottom saying that New Hardware “USB Video Device” was recognized.
Step 4 – IDentalSoft
With a patient selected, from the imaging page, select the twain icon located in the upper right. Marked in red below.

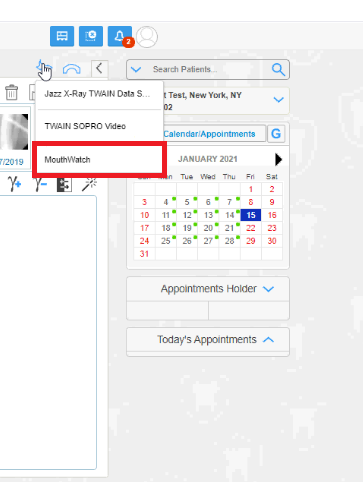

- Select MouthWatch from the list.
Step 5 – Capture Intraoral Photos
The camera will open, and you can begin taking photos. When finished, click Scan in the lower right to save photos to the patient record.
Step 6 - All Set!
