Instructions for Apteryx/XV Lite Integration
MouthWatch cameras easily integrate with Apteryx’s XV Lite imaging software. Use the MouthWatch camera to capture images of the patient and store them directly into the patient record.
You can use our Button Capture Software if you like, but in many cases the photos can be captured through XV Lite.
OPTION 1 – Without MouthWatch Button Capture Software
Step 1 – Plug in the MouthWatch Camera
Make sure that you plug the USB connector into a powered USB port. Sometimes, these are located on the front or back of the computer. If your monitor has USB ports, these may not be powered.
If setting up a MouthWatch Plus+ use a USB 3.0 port.
Step 2 – Windows Recognizes the Camera
Once the MouthWatch camera is plugged in, you should see a small alert on the bottom saying that New Hardware USB Video Device was recognized.

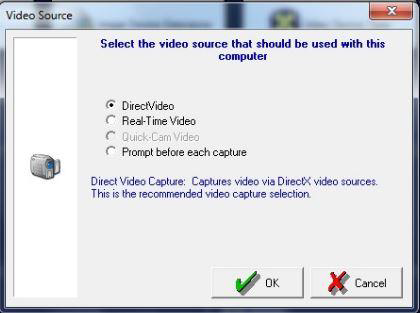

Step 3 – Set Preferences
- Click on Preferences
- You will now see a list of Preferences.
- Select Imaging
- Select Video Device Type
- Click OK, then click Done.

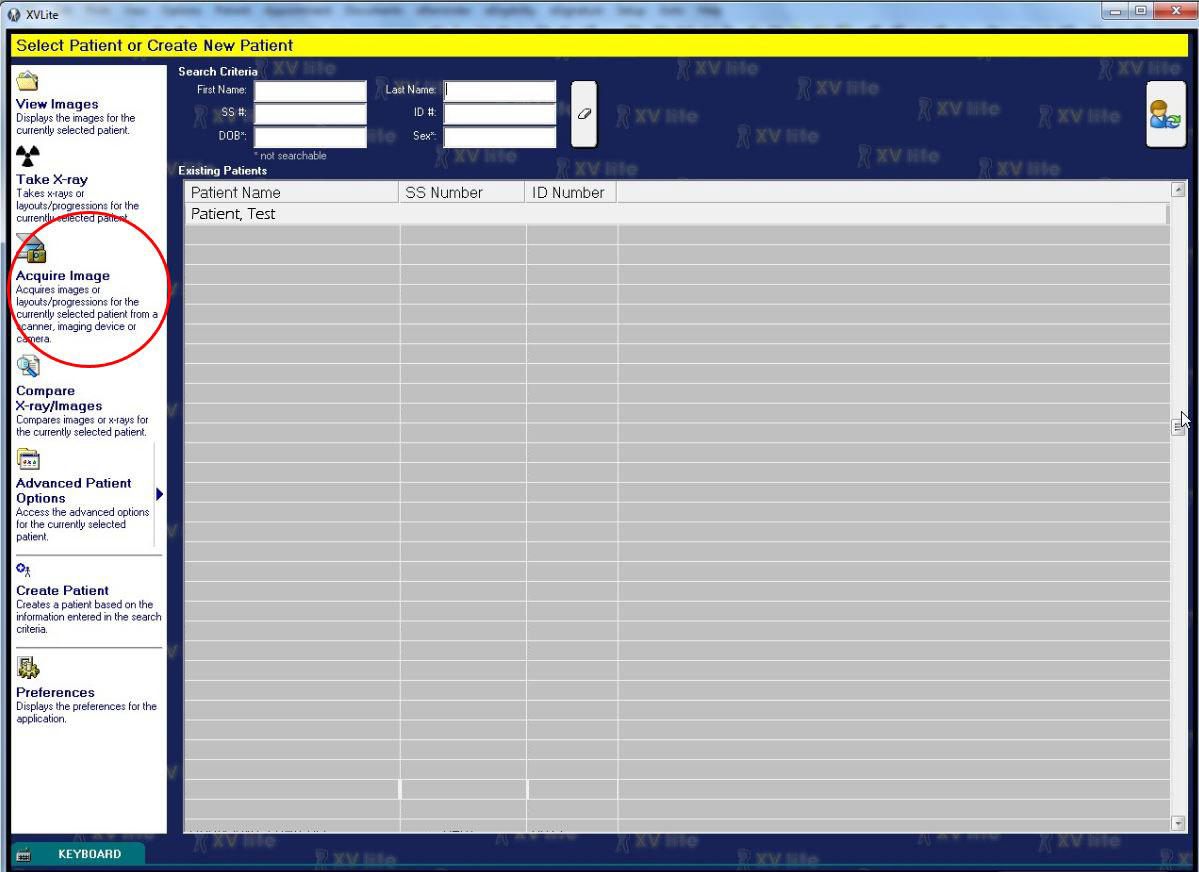

Step 4 – Acquire Image for a Patient
- Select a Patient
- Click Acquire Image
- The DirectVideo window will display
- In the Direct Video window, click Video Options -> Still Pin and Other Video Sizes
- Select I want to capture from the Still Pin
- Set the resolution to 640x480 or 1920x1080 (Plus+ Camera Only)
- Click OK
Now, clicking the capture button will save images to the sidebar as thumbnails. Once you click Done they will be assigned to the patient record.
OPTION 2 – With MouthWatch Button Capture Software
Step 1 – Download the Button Capture Software
-
Use this link to begin the download: DOWNLOAD MOUTHWATCH CAPTURE
-

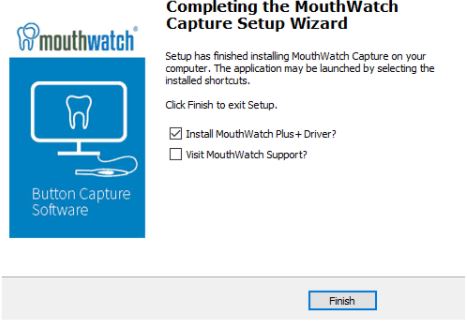

Important: If setting up a MouthWatch Plus+ make sure to install the required driver by checking the box at this step:
- Once you install the software, right click on the MouthWatch Capture icon in the lower right corner of your screen
- A menu will display. Left click on Apteryx
Quick Tip: If you don’t see the MouthWatch Capture icon, click the ^ button (indicated by the arrow in the photo above) to expand the System Tray. You can drag and drop the icon from the expanded System Tray down to your Taskbar.
Step 2 – Plug in the MouthWatch Camera
Make sure that you plug the USB connector into a powered USB port. Sometimes, these are located on the front or back of the computer. If your monitor has USB ports, these may not be powered.
Step 3 – MouthWatch Capture Recognizes The Camera
Once the camera is plugged in, the MouthWatch Capture icon should turn blue in the system tray indicating it sees the camera.
Step 4 – Capture Video Image
Repeat steps 3 and 4 as shown above with 1 change in step 4.
- In the Direct Video window, click Video Options -> Still Pin and Other Video Sizes
- Select I want to capture from standard video stream
- Set the resolution to 640x480 or 1920x1080 (Plus+ Camera Only)
- Click OK
(If there is no option for Capture Video Image, or there is no Direct Capture Extension, then you may need to download the latest Direct Video plugin at: http://www.apteryx.com/apteryx-updates-site
Look for:
DirectVideo - Updates the DCV IX for DirectVideo.
- The Direct Video window will begin streaming video from the MouthWatch camera
- Click the capture button to save the image
- When you close out, the images will be saved to the patient record
Step 5 – All Done!
