Instructions for Romexis (Planmeca) Integration (TWAIN)
MouthWatch cameras easily integrate with Romexis imaging software. Use the MouthWatch camera to capture images of the patient and store them directly into the patient record.
Step 1 – Download the Button Capture Software
If setting up a MouthWatch Plus+, make sure to install the required driver by checking the box during installation.

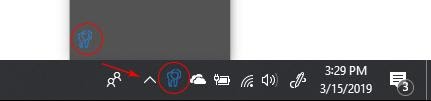

- Once installed, right-click the MouthWatch Capture icon in the lower right corner of your screen.

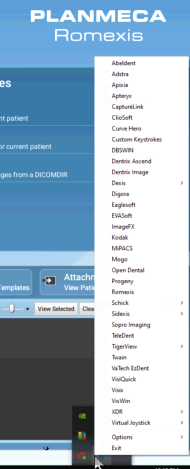

- From the menu, left-click TWAIN.
If you don’t see the MouthWatch Capture icon, click the ^ button to expand the System Tray. You can drag and drop the icon from the expanded System Tray down to your Taskbar.
Step 2 – Plug in the MouthWatch Camera
Make sure you plug the USB connector into a powered USB port. Sometimes these are located on the front or back of the computer. If your monitor has USB ports, these may not be powered.
If setting up a MouthWatch Plus+, use a USB 3.0 port.
Step 3 – Confirm MouthWatch Capture Detects the Camera
Once the camera is plugged in, the MouthWatch Capture icon should turn blue in the system tray, indicating it sees the camera.
Step 4 – Select a Patient and Configure TWAIN in Romexis
Launch Romexis and select the patient you would like to capture images for.
Navigate to Capture / Scan and open the TWAIN settings.
- Set the TWAIN device to MouthWatch.

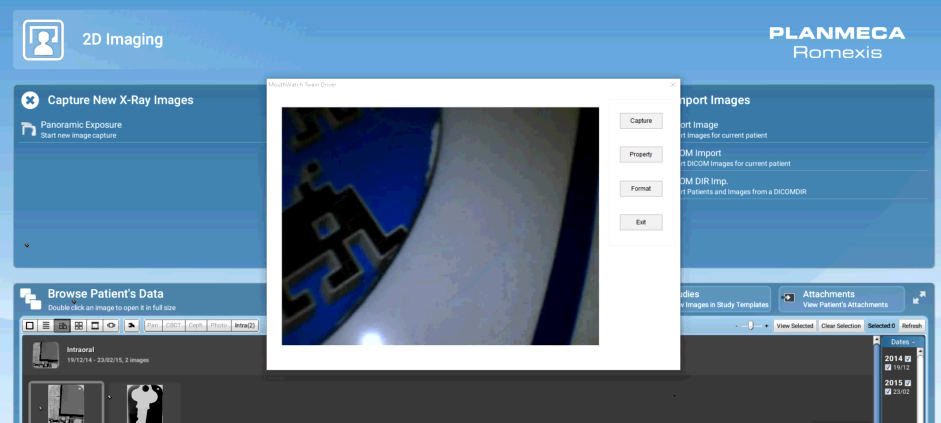

Step 5 – Start Video and Capture Images
Select the MouthWatch TWAIN source to start the live video feed.
- Press the capture button on the MouthWatch intraoral camera.
- Captured images will be saved directly to the patient record.
- Click EXIT when you are finished capturing images.
Step 6 – All Set!
You are now ready to begin capturing images directly into Romexis.
