Getting Started with Your MouthWatch Intraoral Camera
Step 1: Plug in the Camera
Connect your MouthWatch camera to a powered USB port on your computer. Avoid monitor USB ports or unpowered USB hubs, as these may not supply enough power.
Plus+ cameras: Make sure the camera is connected to a USB 3.0 port.
Step 2: Install MouthWatch Capture Software
Download and install the MouthWatch Button Capture software.
*Plus+ cameras: Make sure to select checkbox for Plus+ Camrea Driver during install.*
Once installed:

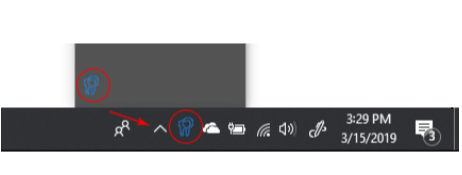

- Locate the MouthWatch icon in your system tray (bottom-right corner of your screen)
- Right-click the icon
- Select your imaging software from the list
This allows the camera button to properly capture images into your software.
Step 3: Confirm Camera Detection
- The MouthWatch Capture icon should turn blue
- This indicates the camera is detected and ready
If the icon is not blue, try a different USB port, then close and reopen MouthWatch Capture. If the camera still is not detected, see the Troubleshooting Tips section below.
Step 4: Configure Your Imaging Software
You can find our full list of setup guides below:
Step 5: Start Capturing Images
- Open a patient record
- Launch the imaging or video capture screen
- Press the button on the camera to capture images
Your MouthWatch intraoral camera is now ready to use for capturing images to support patient education, documentation, and treatment planning.
Troubleshooting Tips
- Try a different USB port if the camera is not detected
- Avoid using unpowered USB hubs or monitor USB ports
- Ensure MouthWatch Capture is running and set to your imaging software
- Plus+ cameras: Make sure the camera is connected to a USB 3.0 port. A USB 2.0 port may result in poor image quality or the camera not being detected
Need Additional Help?
If you have any questions or need assistance with setup, our support team is happy to help:
📧 support@mouthwatch.com
💬 Live Chat: Mon–Fri, 9am–5pm ET
📞 877-544-4342 (Mon–Fri, 9am–5pm ET)
